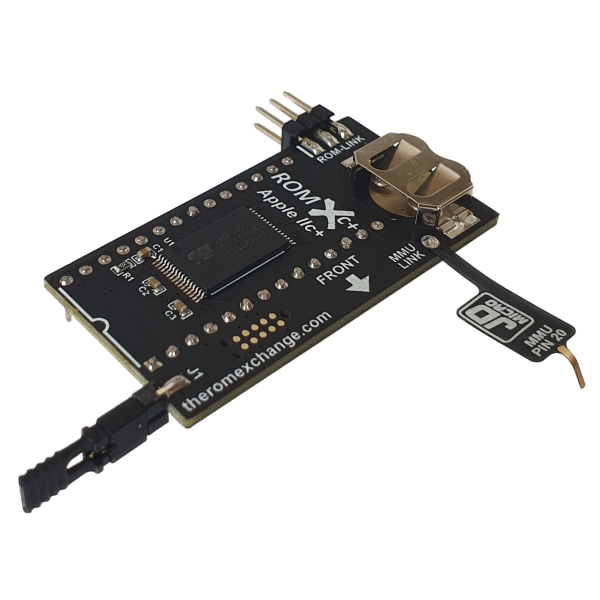

ROMXc+ (Apple IIc Plus)

ROMXc+ is available for order from ReActiveMicro.

Key Features

• Replaces Monitor ROM and optionally the Video ROM also
• 15 x 32KB user programmable Image slots + firmware and recovery images
• Supports 16KB or 32KB images
  • Upload a custom ROM in seconds!
  • Images can be system ROMs, DOS images, games or applications!
  • Store Information for each image
  • ROMify tutorial and template available so you can convert your apps/games to run from ROM
  • Boots DOS instantly
• On-board real-time clock with CR1220 backup battery
  • Estimated 3.5+ years battery life
• Socket Safe Headers wont damage the original IC sockets
• ROM-Link interface for optional external video ROM

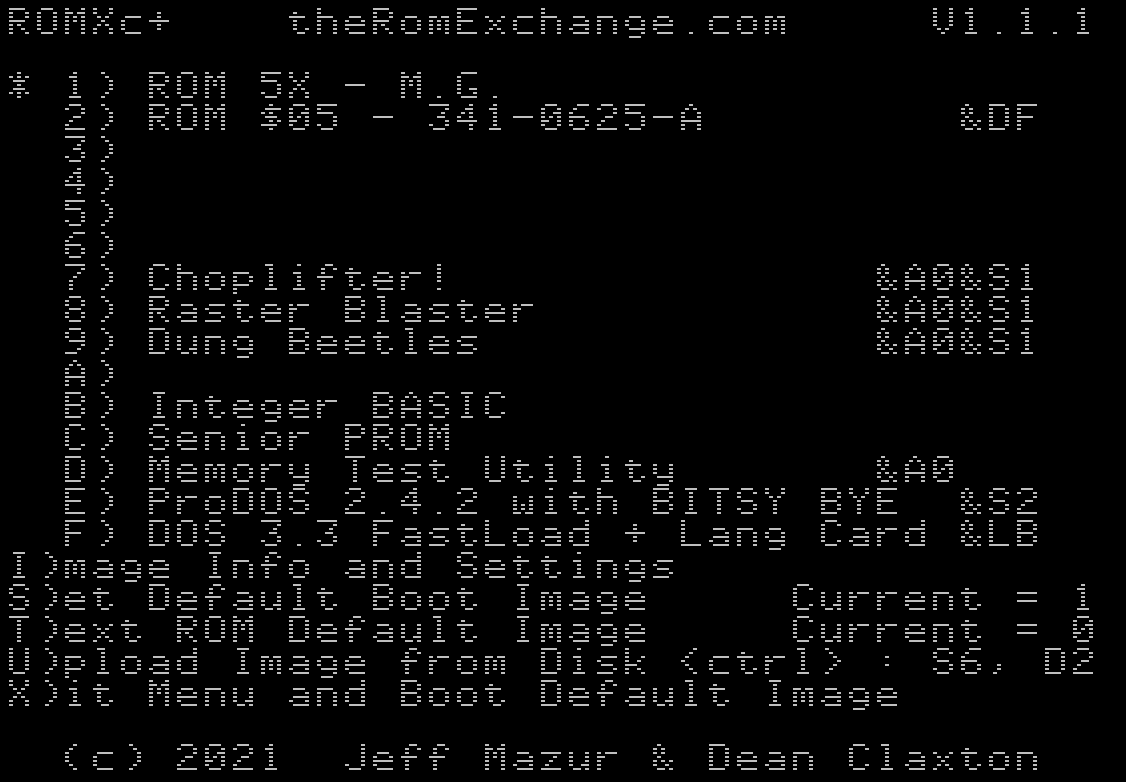

  • No switches - select the font through the menu system
• Works with overclocked //c+'s (tested to 40MHz).
• Select accelerator speed per image
• Preloaded with lots of ROMs/apps to try including ROM 5X by Michael Guidero:

Notes

• ROMXc Plus does not operate in an Apple IIc. See ROMXc for Apple IIc.
• ROMXc Plus may not fit underneath expansion cards. There is a interfence with A2Heaven RamExpress II+ where the battery on the RamExpress may foul the ROMXc+. Moving the battery on the RamExpress to the top side may resolve this, else an insulator between the boards - we will advise as we have more information available.
• JTAG header is for production programming of the CPLD only - it's not used to upload ROM images. ROM's are uploaded directly from the computer through the menu system - U)PLOAD an image to flash memory, where it will now be stored until you decide to overwrite it with another!

In the Media

Javier Rivera's First Look and Update Videos:
