fleXrom2K (Apple II, II+, IIe, IIc)

fleXrom2K will be available for order shortly, from MacEffects, ReActiveMicro, and eBay Australia.

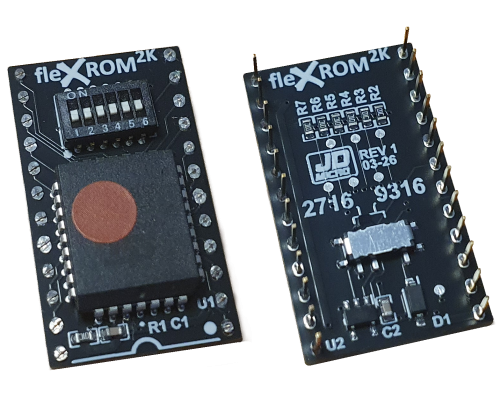

fleXrom%20Hardware

Key Features

fleXrom2K is a 2KB ROM replacement that is pre-programmed with 64 different Apple II ROM images. Each ROM image is individually selected using the 6-way DIP switch on the top side of the module. The current master list includes:

  • 35 x system ROM images (F8, F0, E8, E0, D8, D0 ROM) for the Apple II and Apple II+.
  • 19 x character generator ROM images for Rev 7 Apple II+ (2316 SPCL).
  • 4 x keyboard map ROMs for Apple IIc and IIe.
  • 6 x peripheral card ROMS.

As the revision 7 Apple II+ motherboard used both 9316 ROMs and a 2716 compatible ROM, fleXrom2K supports both 9316 and 2716 ROM operating modes, again switch selectable using a 2 position switch on the underside of the module.

See the User Guide for further detail.
