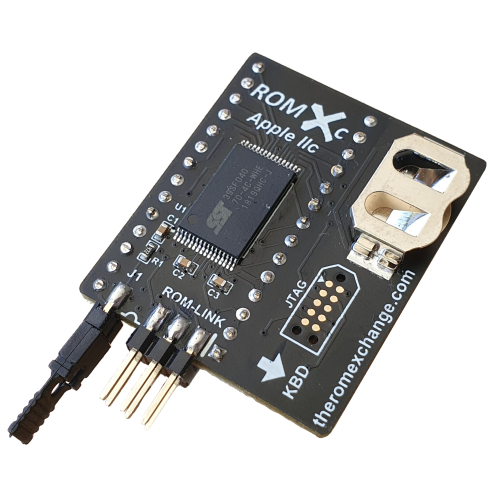

ROMXc (Apple IIc)

ROMXc is available for order from ReActiveMicro!

Key Features

  • Replaces Monitor ROM and optionally the Video ROM also
  • 15 x 32KB user programmable Image slots + firmware and recovery images
  • Supports 16KB or 32KB images
    • Upload a custom ROM in seconds!
    • Images can be system ROMs, DOS images, games or applications!
    • Store Information for each image
    • ROMify tutorial and template available so you can convert your apps/games to run from ROM
    • Boots DOS instantly
  • On-board real-time clock with CR1220 backup battery
    • Estimated 3.5+ years battery life
  • Socket Safe Headers wont damage the original IC sockets

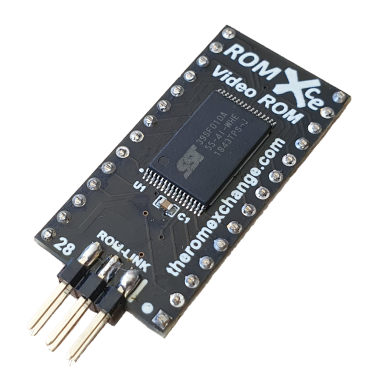

  • ROM-Link interface for external video ROM
    • No switches - select the font through the menu system
  • Works with ZIP chips!
    • Select accelerator speed per image
  • Preloaded with lots of ROMs/apps to try :

Notes

  • ROMXc does not operate in an Apple IIc Plus. See ROMXc+ for Apple IIc Plus..
  • ROMXc may not fit underneath certain memory expansion cards. It does fit under an Apple slinky card no problem however.

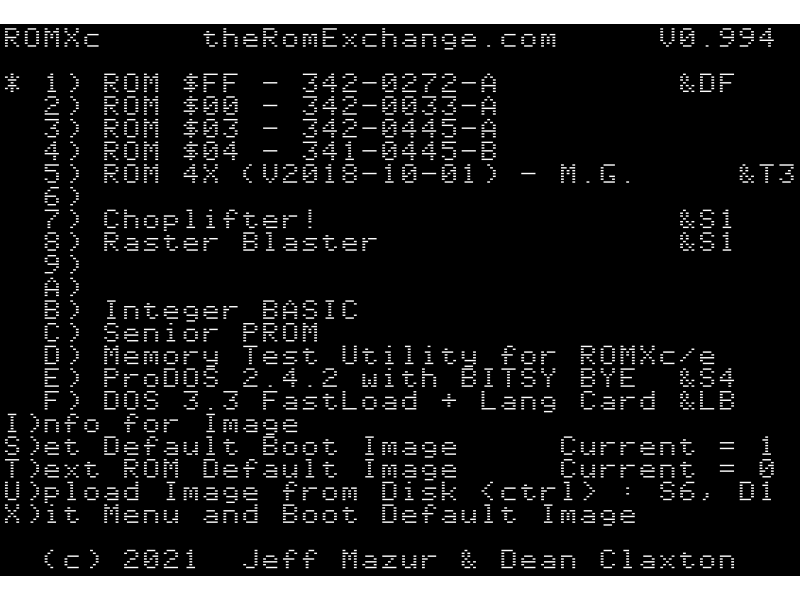

  • JTAG header is for production programming of the CPLD only - it's not used to upload ROM images. ROM's are uploaded directly from the computer through the menu system - U)PLOAD an image to flash memory, where it will now be stored until you decide to overwrite it with another!

In the Media

Javier Rivera's First Look and Update Videos:

Joe Strosnider's Review :
